Ford has stated it defended 40-50 Florida crashworthiness cases per year at roughly $20 million in annual costs, according to a 2011 Florida Bar Journal article. That's not a nationwide benchmark, but it shows how much weight manufacturers put on these cases.
Crashworthiness analysis examines how a vehicle's structure and safety systems performed once the collision started. It shapes case strategy, settlement value, and jury persuasion. Courts and juries increasingly expect 3D visual evidence to make sense of the engineering, which is where expert analysis and forensic animation meet.
Key Takeaways
- Crashworthiness measures how well a vehicle protected occupants—not what caused the crash
- Scope includes structural crush, restraint performance, ejection prevention, and post-crash fire risk
- Applies in motor vehicle, product liability, and aviation litigation
- 3D reconstruction turns technical findings into evidence juries can follow
- Court-ready visualization strengthens admissibility and case credibility
What Is Crashworthiness Analysis?
Crashworthiness analysis is the engineering and forensic evaluation of how a vehicle's structure and safety systems performed to protect occupants during a collision. NHTSA defines crashworthiness in occupant-protection terms, focusing on design, countermeasures, and equipment that reduce fatal and serious injuries.
Here's the critical legal distinction: crashworthiness addresses the "second collision" (the occupant's collision with the vehicle interior), not what caused the first impact.
This concept traces back to Larsen v. General Motors Corp. (1968), which held that manufacturers must use reasonable care to avoid unreasonable injury risk in a collision, even without making vehicles accident-proof.
Crashworthiness analysis is used in:
- Product liability litigation
- Personal injury claims
- Insurance disputes
- Regulatory compliance reviews
Experts typically rely on physical crash testing, Finite Element Analysis (FEA) simulation, and post-incident vehicle inspection to support their findings.
Why Crashworthiness Analysis Is Critical in Litigation
Strong crashworthiness findings, clearly presented, can shift settlement negotiations or verdicts. This analysis often determines whether an injury was foreseeable and preventable, which directly shapes both liability and damages arguments.

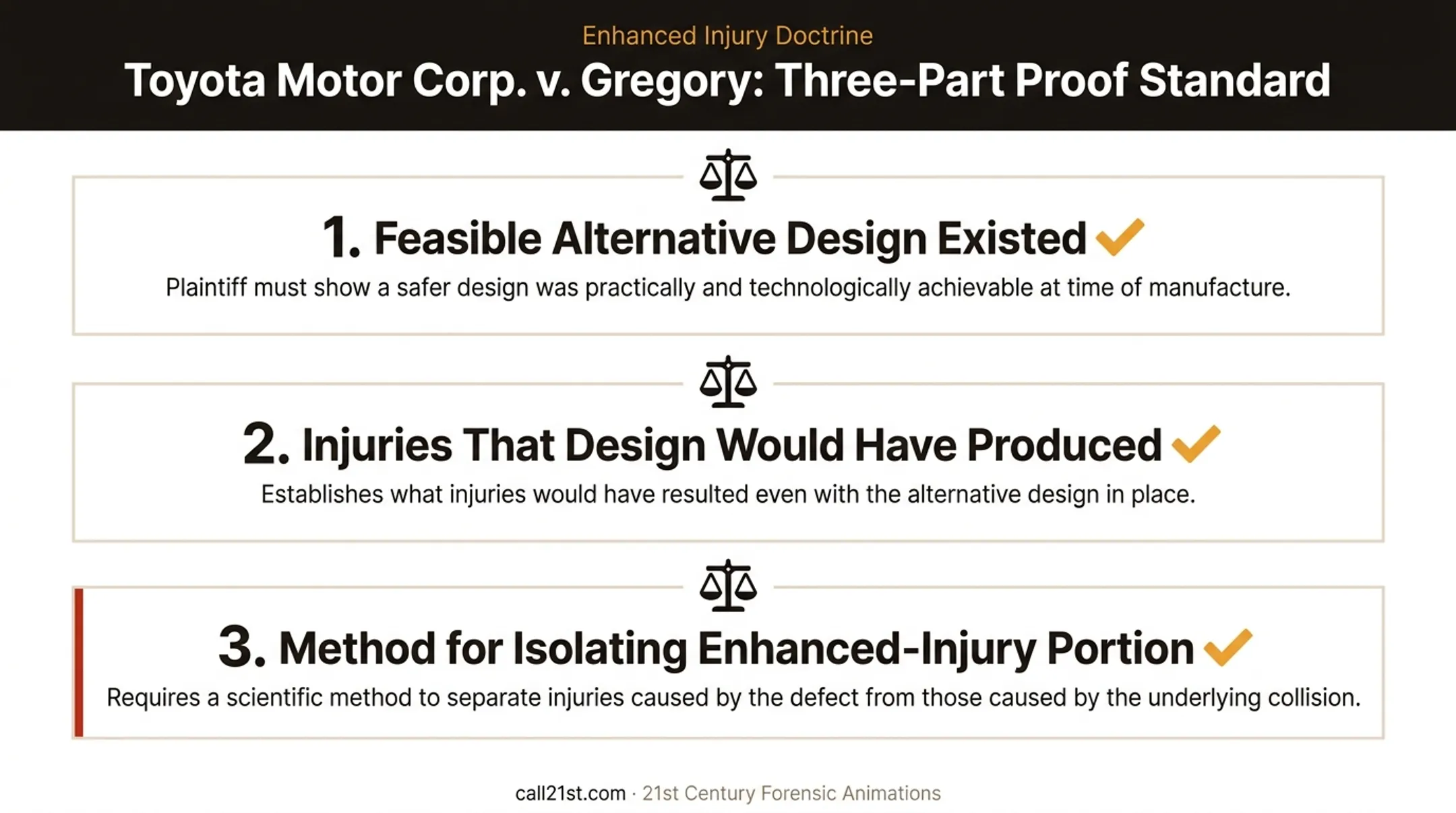

Courts require more than a theory. In Toyota Motor Corp. v. Gregory (Ky. 2004), the plaintiff had to show three things: a feasible alternative design, the injuries that design would have produced, and a method for isolating the enhanced-injury portion tied to the defect. Skip any piece, and the case falls apart.
What solid crashworthiness analysis does for a case:
- Clarifies whether design defects contributed to injury severity
- Grounds arguments in physics rather than dueling opinions
- Improves juror comprehension of technical failure points, such as structural collapse or restraint failure
- Surfaces overlooked factors like aftermarket modifications or defective components
- Supports strategy from discovery through trial
- Produces data-backed arguments built to survive cross-examination and Daubert challenges
The stakes of getting this wrong are real. In Gray v. General Motors (2001), the court admitted expert testimony on an alleged seat-belt defect. The plaintiff still never moved the proof from "possibility" to "probability," and lacked evidence of a feasible alternative design. Admissibility isn't the same as a winning case.

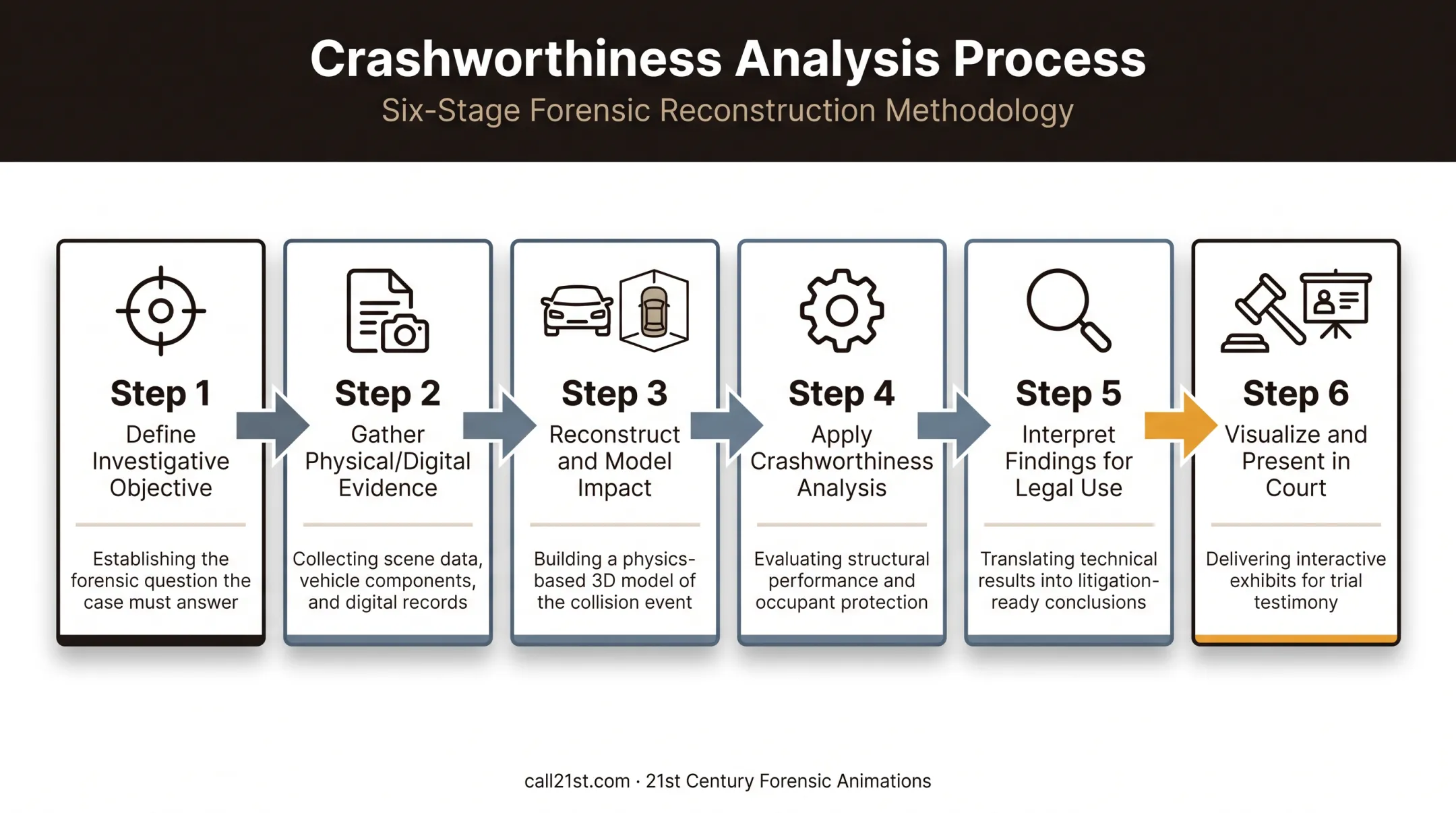

How Crashworthiness Analysis Works – Step by Step
Attorneys and experts follow a practical workflow to build an admissible, persuasive crashworthiness case. Common oversights include skipping vehicle preservation, misreading crush patterns, or never tying findings to a visual exhibit that a jury can actually use.
Step 1 – Define the Investigative Objective
Identify whether the focus is structural integrity, restraint performance, or ejection/fire risk. That choice clarifies case scope, sets the evidence plan, and keeps every expert aligned on the same question.
Step 2 – Gather Physical and Digital Evidence
Collect vehicle inspection data, crash data recorder (EDR) reports, photographs, and scene evidence. NHTSA notes that EDR data helps evaluate crash and injury circumstances, but current systems "are not perfect." Document the extraction tool, protocol, and any missing data so the record stays complete and defensible.
Step 3 – Reconstruct and Model the Impact

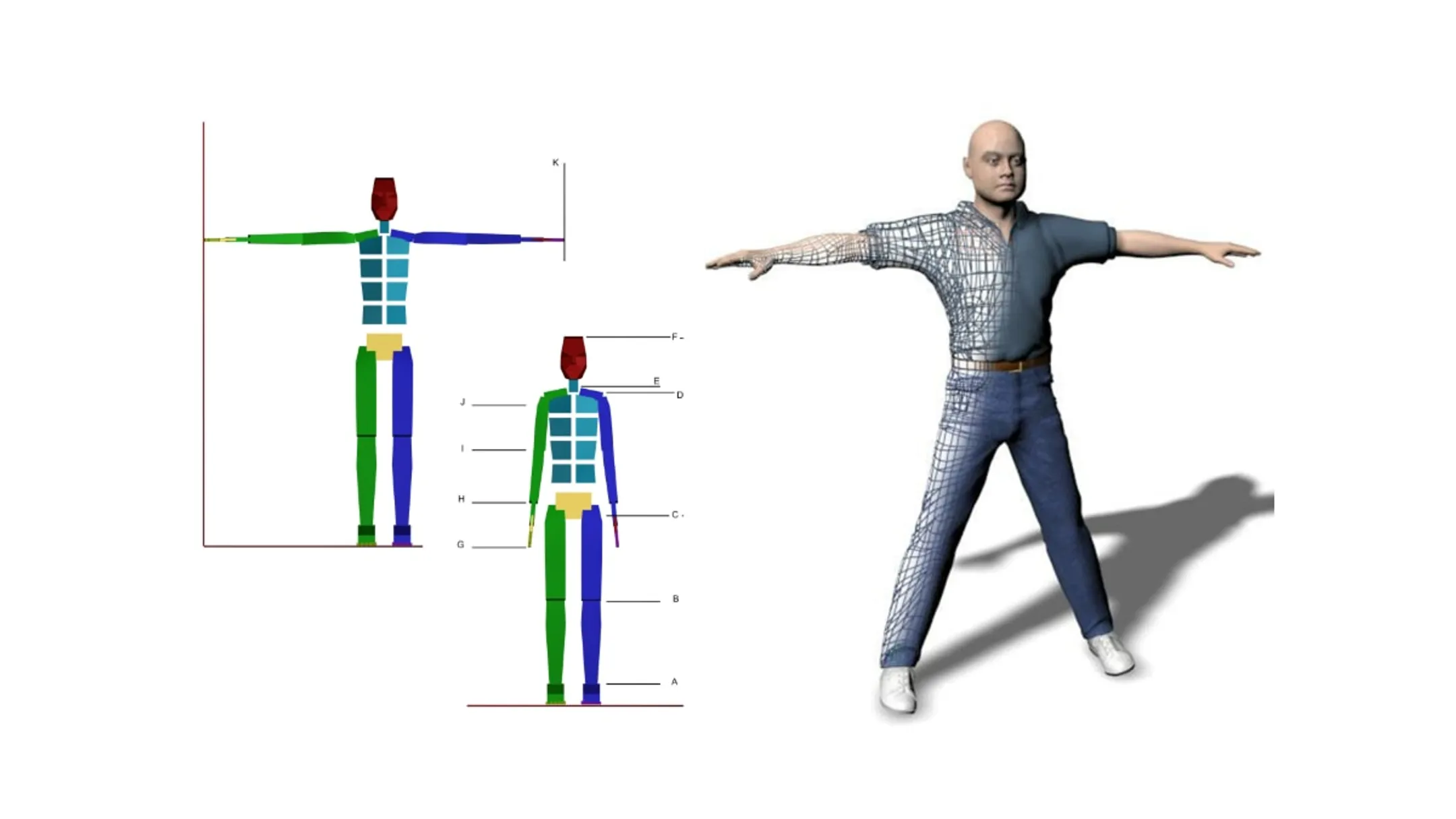

Laser scanning, photogrammetry, or FEA simulation recreate crush patterns and forces. NHTSA's own finite-element models combine static tests, dynamic tests with anthropomorphic test devices, and teardown measurements to validate results. If the model is weak, force estimates and defect opinions lose reliability downstream.
Step 4 – Apply Crashworthiness Analysis
Assess how the structure, restraints, and safety cage performed against the actual forces involved. This is where defect identification happens: compare designed protection to real-world performance and document each shortfall with supporting measurements.
Step 5 – Interpret Findings for Legal Use
Translate technical results into a clear causation narrative that separates crash cause from injury cause. Juries need that distinction to decide liability without conflating the collision itself with preventable injury mechanisms.
Step 6 – Visualize and Present in Court
Convert findings into a court-admissible 3D animation or exhibit that meets evidentiary standards. A clear exhibit helps jurors follow crush sequence, restraint timing, and injury mechanism without relying on technical jargon alone.
Crashworthiness Analysis – Example Case Walkthrough
Consider a generic frontal-collision scenario. A sedan strikes a fixed barrier at moderate speed. The driver survives but suffers severe chest and head trauma disproportionate to the impact speed.
The investigative team gathers physical and electronic evidence:
- Downloads EDR data for impact speed and event timing
- Photographs the vehicle interior and seating positions
- Inspects the safety cage for occupant-compartment intrusion
- Checks whether the seat belt pretensioner activated on time
A common mistake here: relying solely on a written expert report. Without a visual reconstruction, jurors struggle to connect "occupant compartment intrusion" or "pretensioner failure" to what actually happened to the person in that seat. Words on a page don't show force, timing, or sequence the way a model does.
The reconstruction team validates their findings against the physical evidence, cross-checking crush measurements, EDR timing, and restraint performance data. Every input gets documented so the exhibit can survive an evidentiary challenge.
The resulting 3D visualization shows, frame by frame, how the structure deformed and how the restraint system did (or didn't) do its job. That clarity on causation separates why the crash happened from why the injury was as severe as it was. It becomes central to settlement talks or, if the case goes further, to the verdict.
How 21st Century Forensic Animations Can Help
Crashworthiness disputes often turn on whether a jury can see how structure, speed, and occupant kinematics interacted. Since 1989, 21st Century Forensic Animations has operated as the oldest independent forensic animation firm in the industry, turning those engineering findings into dimensionally accurate, court-ready 3D visualizations.
The firm supports motor vehicle accident, product liability, and related civil and criminal matters across jurisdictions.
Their reconstruction toolkit includes:
- Terrestrial 3D laser scanning — captures millions of spatial measurements to build accurate point clouds of vehicles and scenes
- Close-range photogrammetry — extracts 3D measurements from photos, dashcam footage, or surveillance video, including vehicle damage and skid marks
- Drone imagery — processes hundreds or thousands of overlapping images into aerial 3D models for complex scenes
Why attorneys work with them:
- Precise, verifiable 3D reconstructions grounded in physics and physical evidence
- Methodology documentation built to withstand evidentiary challenges
- Deep familiarity with civil, criminal, state, federal, and international rules of evidence
- Availability for tight trial deadlines, with 24/7 responsiveness
- Free consultation for first-time attorney clients
If you're heading into a crashworthiness case and need an exhibit that holds up under cross-examination, call (800) 460-2887 or request a free case review.
Conclusion
Crashworthiness analysis clarifies whether an injury was preventable, giving attorneys clarity and control over case strategy from day one. But findings are only as persuasive as their presentation. Pairing solid engineering with a clear, court-ready visual exhibit turns technical findings into evidence that holds up in negotiation rooms and courtrooms alike.
Frequently Asked Questions
What is crashworthiness analysis?
It's the engineering and forensic evaluation of how a vehicle's design and safety systems protected occupants during a crash. It focuses on injury outcomes, not on how the collision itself started.
What does crashworthiness mean?
Crashworthiness refers to injury prevention capability, not crash causation. It's the difference between why the first impact happened and why the occupant was hurt as badly as they were.
What is a good crash test rating?
NHTSA uses a 5-star system (five is best) based on frontal, side, and rollover testing. IIHS uses four ratings (Good, Acceptable, Marginal, and Poor), with "Good" meaning injury measures well below reference thresholds.
What are the three stages of a crash?
NHTSA organizes crash investigations around pre-crash, crash, and post-crash phases. Crashworthiness analysis focuses mainly on the crash and post-crash phases, where occupant protection and injury outcomes are determined.
How is crashworthiness analysis used in a lawsuit?
It establishes design defect claims by showing a feasible alternative design existed and estimating how much less severe injuries would have been without the alleged defect. Courts require this proof to move beyond mere possibility.
Why is 3D visualization important in crashworthiness cases?
A peer-reviewed mock-juror study found 3D digitizations and printed models improved technical-language comprehension over photographs alone. Visual exhibits help jurors follow validated engineering findings; they don't replace the underlying proof.
