Results vary widely, though. A drone inspection is only as good as the pilot's certification, the sensor payload, and the flight plan behind it. This article walks through how to conduct a drone bridge inspection, when it makes sense, what you need before you fly, the variables that affect data quality, and the mistakes that undermine even well-intentioned inspections.
Key Takeaways
- Drones replace bucket trucks and lane closures using high-resolution, thermal, and LiDAR sensors
- MnDOT’s 2018 study found drone inspections cut costs by an average of 40% (~$300/day UAS vs. ~$5,000/day under-bridge vehicles)
- Requires FAA Part 107 certification, correct drone/sensor selection, and disciplined pre-flight planning
- Best suited for routine NBIS inspections, hard-to-reach elements, and post-incident forensic documentation
- When bridge failures trigger lawsuits, drone-captured data often becomes critical forensic evidence

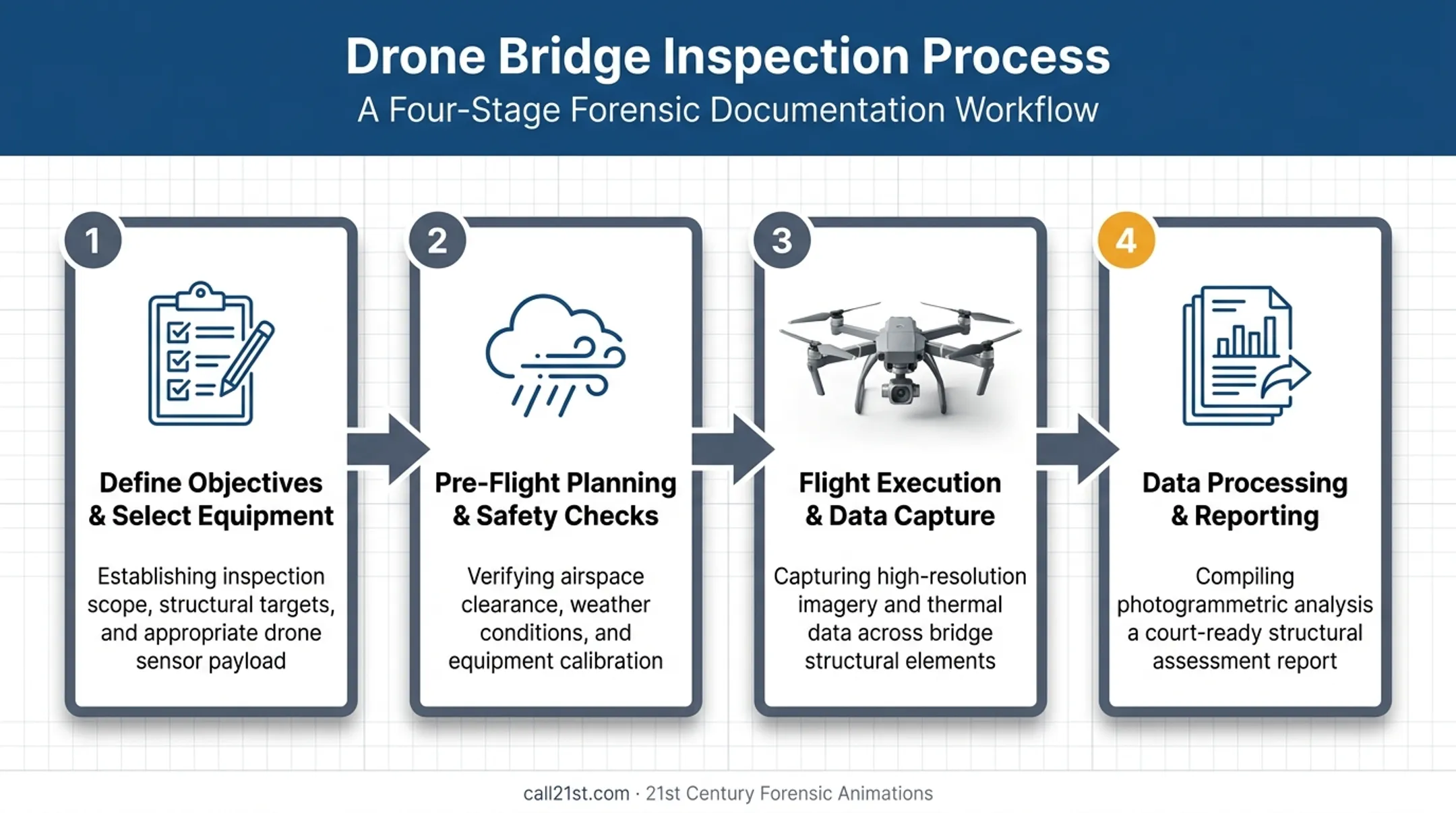

How to Conduct a Bridge Inspection Using Drones
Step 1: Define Inspection Objectives and Select Equipment
Start by deciding what kind of inspection you're running: routine, targeted, or post-incident forensic. Each demands different equipment and a different level of documentation rigor.
- Match the payload to the problem. Visual cameras for general condition assessment, thermal sensors for moisture and delamination, and LiDAR for precise 3D geometry.
- Confirm pilot credentials. The remote pilot in command must hold an FAA Part 107 Remote Pilot Certificate.
- Check airspace requirements. Bridges near airports or in controlled airspace may need LAANC authorization or a Beyond Visual Line of Sight (BVLOS) waiver before you fly.
Step 2: Pre-Flight Planning and Safety Checks
Weather and lighting conditions directly affect image usability. Wind gusts near bridge structures can push small unmanned aircraft systems (UAS) past safe operating limits, and poor lighting produces unusable thermal data.
Before launch, run through:
- Weather review — wind speed, precipitation, and lighting angle for the time of day
- Equipment check — battery levels, camera calibration, obstacle avoidance sensors
- Traffic coordination — even minimal drone footprints sometimes need brief partial closures
- GPS mapping — identify GPS-denied zones under steel girders where vision-based navigation takes over
Step 3: Flight Execution and Data Capture
Fly systematic passes over deck surfaces, undersides, piers, abutments, and bearing assemblies. Thermal imaging is particularly useful here, since it can reveal moisture intrusion and delamination invisible to a standard camera.
Whether you're running programmed flight paths or manual passes, capture continuous video or structured photo sets suitable for photogrammetry processing. Document GPS coordinates and timestamps on every pass — this metadata becomes essential if the inspection ever needs to support a chain-of-custody argument later.
Step 4: Data Processing and Reporting
Raw captures only become useful once they are processed into measurable deliverables.
- Convert imagery into 3D models, point clouds, or orthomosaics using photogrammetry software.
- Measure crack widths, spalling extent, and corrosion patterns against required accuracy thresholds.
- Compile findings into a report suitable for maintenance planning or, if needed, legal review.
- Archive everything securely for National Bridge Inspection Standards (NBIS) compliance and future reference.
When Should You Use Drones for Bridge Inspection?
Drones aren't the right tool for every job. They excel at:
- Routine NBIS inspections under 23 CFR 650.311's risk-based intervals, which range from 12 to 72 months depending on condition
- Hard-to-reach spans, over-water structures, and confined spaces
- Post-incident forensic documentation after a collapse, collision, or structural failure
They're less efficient when:
- Structures are extremely small and a visual walk-through beats setting up a flight plan
- Airspace is restricted and proper waivers aren't in place
Nonredundant steel tension members still require hands-on inspection under federal rules. Drones supplement that work; they don't replace it.
What You Need Before Conducting a Drone Bridge Inspection
Preparation drives both data quality and evidentiary admissibility. Skimp here, and you'll pay for it later.
Drone and Camera Specs
Choose a drone with enough flight time, payload capacity, and camera resolution for the structure. Fracture-critical documentation needs finer detail than a routine visual sweep.
Site and Weather Conditions
Clear weather and acceptable wind are non-negotiable. If GPS drops under a steel superstructure, the aircraft needs vision-based navigation to hold stable positioning.
Certifications and Chain of Custody
Before flight day, lock down the credentials and documentation trail:
- FAA Part 107 Remote Pilot Certificate
- Working knowledge of controlled airspace rules and waiver processes
- Documented chain-of-custody procedures if the data might end up in court

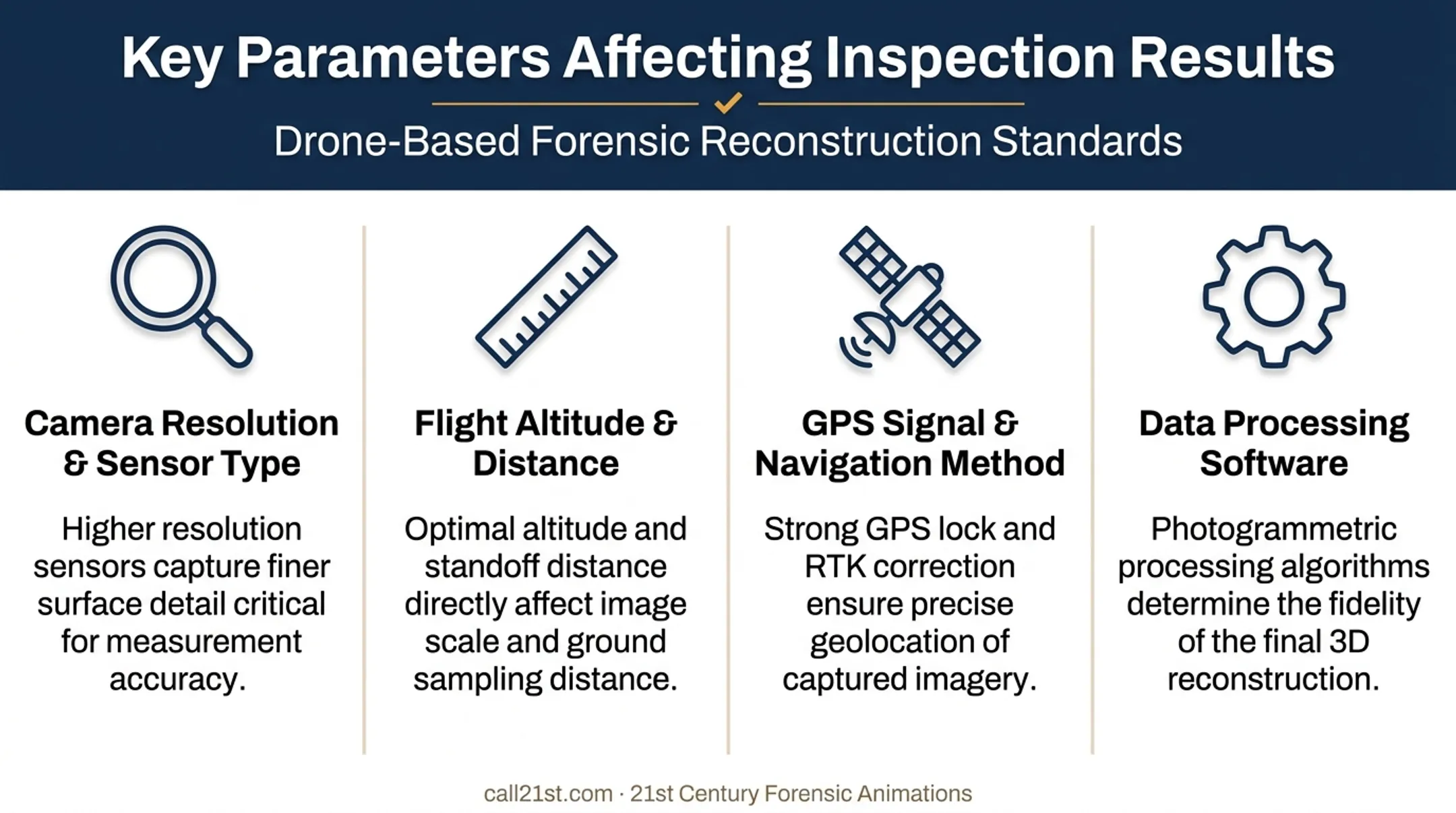

Key Parameters That Affect Drone Bridge Inspection Results
Camera Resolution and Sensor Type
Resolution determines whether you catch hairline cracks or only major defects. A Utah State University bridge inspection study found a common 12MP camera estimated deflection within 0.1mm under controlled conditions—but much weaker performance on very fine fatigue cracks. There's no universal FHWA megapixel standard — match sensor capability to the specific defect type you're hunting.
Flight Altitude and Distance from Structure
Closer passes yield finer detail. They also raise collision risk. Pilots balance detail against safety on every flight:
- Tighter standoff improves crack and joint visibility
- Complex girder geometry and under-deck spaces raise collision risk
- Confined clearances leave little margin for wind or pilot error
GPS Signal and Navigation Method
Steel bridges create GPS-denied zones almost by default. Documented workarounds include:
- Stereo vision
- Visual-inertial odometry
- SLAM-based mapping
One field study found a common consumer drone could fly under bridges with stereo vision but struggled to hold position over moving water and in wind. Navigation tech still has real limits.
Data Processing Software and Model Accuracy
Raw footage is not evidence. It has to become a measurable 3D model or orthomosaic first. Software choice affects turnaround time and measurement precision—and precision is what matters when the model has to support a legal claim or expert exhibit.
Common Mistakes When Inspecting Bridges Using Drones
Small process gaps can ruin image quality, void an inspection standard, or undercut the record if a bridge condition later ends up in dispute. Watch for these errors:
- Skipping pre-flight weather checks — wind, rain, and low light produce blurry frames or a lost aircraft
- Using inadequate camera resolution — imagery fails routine or fracture-critical inspection standards
- Failing to log GPS coordinates and timestamps — weakens evidentiary value if litigation follows
- Ignoring airspace restrictions — unauthorized flights near controlled zones risk the mission and legal exposure
Alternatives to Drone Bridge Inspections
Drones don't replace every method. Some scenarios still call for traditional approaches.
| Method | When It's Better | Trade-Offs |
|---|---|---|
| Bucket truck / snooper vehicle | Small, simple structures with easy access | Higher cost, longer duration, greater safety risk, traffic disruption |
| Fixed sensor structural health monitoring | Continuous, long-term monitoring of critical bridges | Higher upfront installation cost; permanent on-structure hardware |
| Diver-based underwater inspection | Scour-critical substructure elements requiring direct contact | High cost and time; limited to elements needing direct contact |
Underwater inspection costs vary enormously by water conditions, depth, and access — there's no reliable national per-bridge rate, so budget these project by project.
When Drone Bridge Inspection Data Matters in Litigation

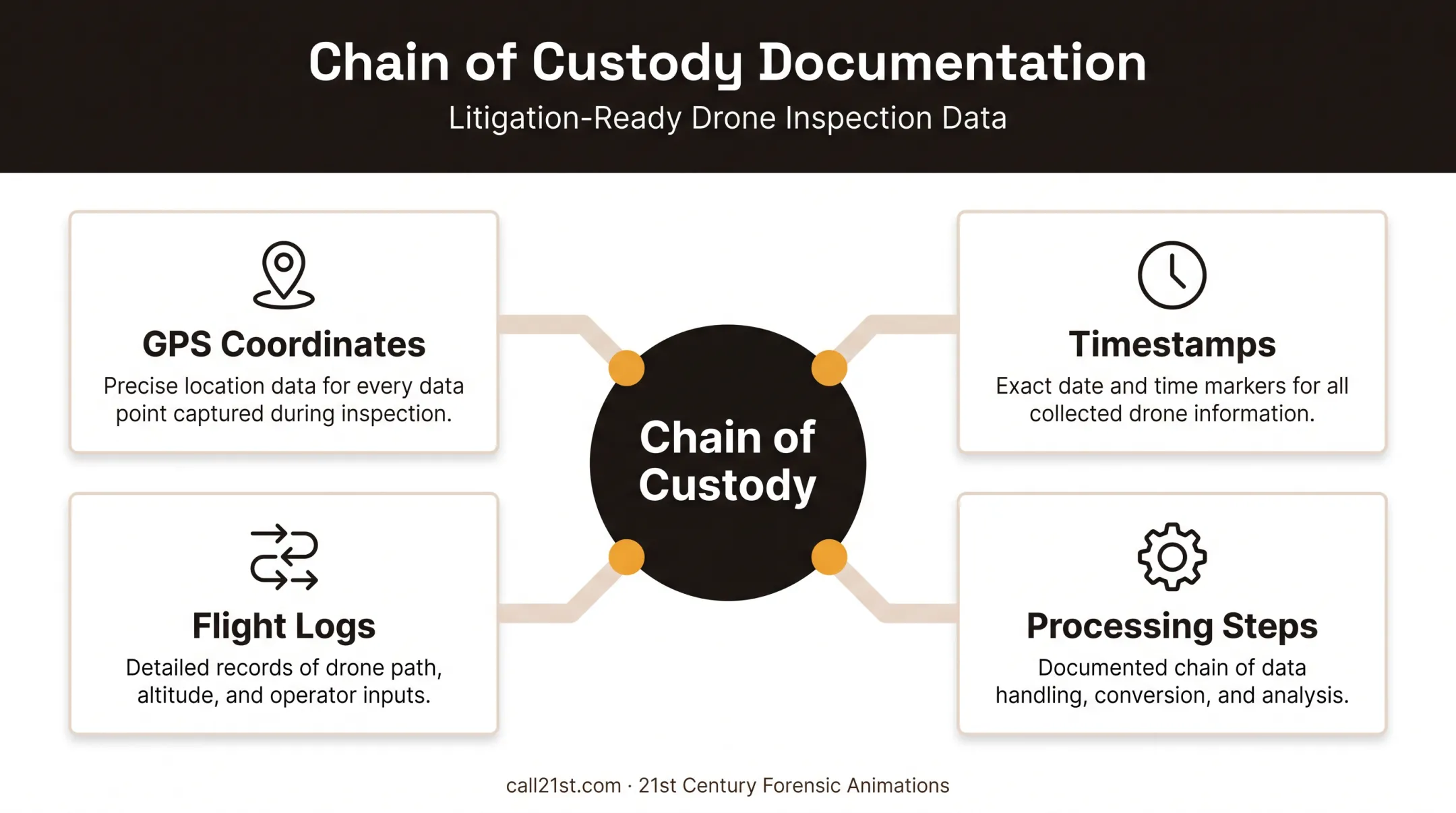

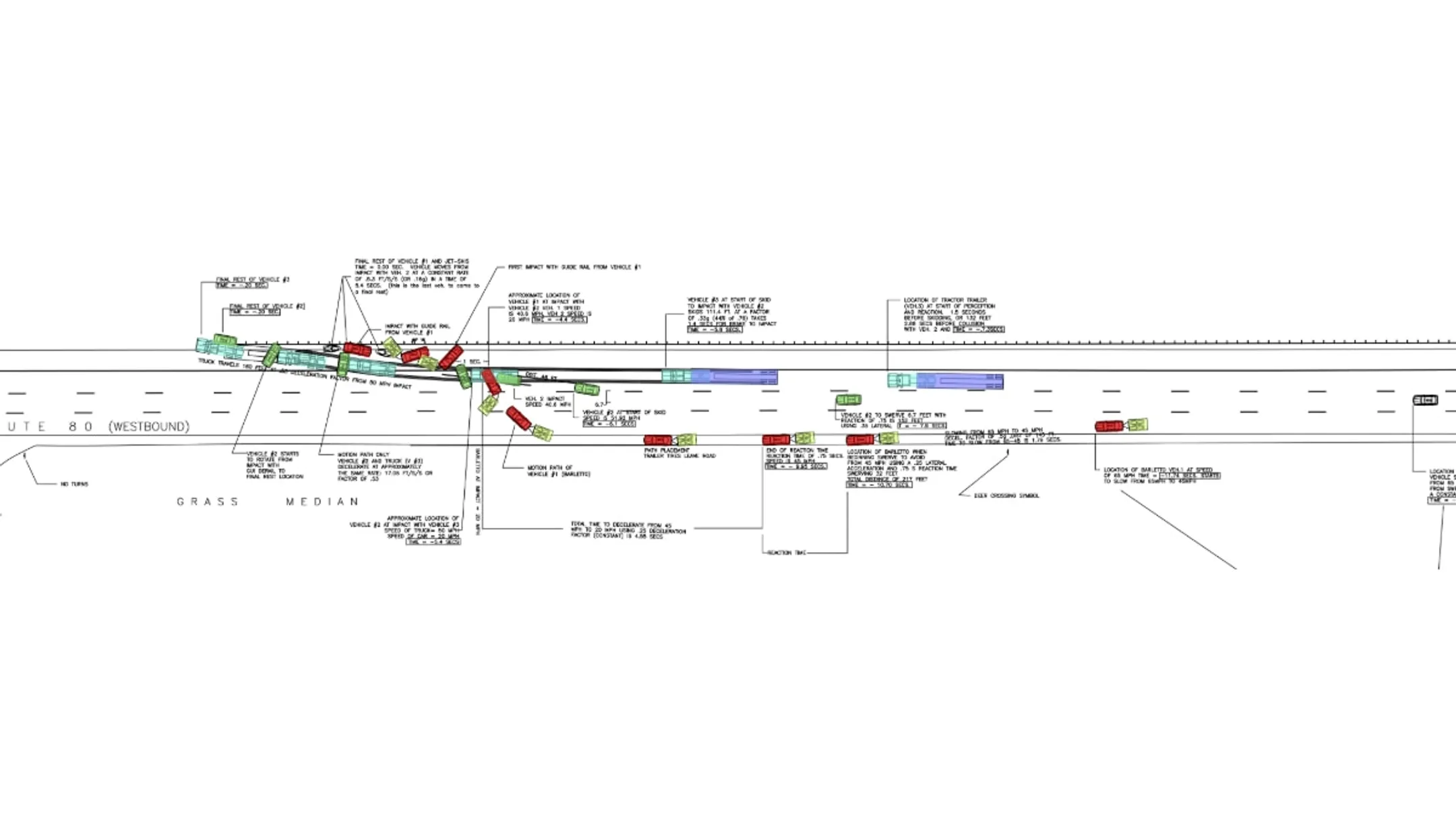

When a bridge failure, collapse, or structural incident ends up in a courtroom, the original inspection data often becomes the centerpiece of the case. Drone-captured 3D models, point clouds, and photogrammetric measurements become visual exhibits that help a jury understand a complex structural failure. 21st Century Forensic Animations turns that inspection data into court-ready evidence. Mission-planned UAV flights capture hundreds to thousands of overlapping high-resolution images, then process them into dimensionally accurate 3D reconstructions grounded in physical evidence. The same method applies to terrestrial laser scanning and photogrammetry, producing exhibits built on objective, verifiable data. Chain-of-custody documentation matters here. The stronger the original drone inspection's record, the more credible any later forensic animation or reconstruction becomes before a judge or jury. Key elements include:
- GPS coordinates
- Timestamps
- Flight logs
- Processing steps Under Federal Rule of Evidence 702, expert testimony must rest on sufficient facts and reliable methods. Well-documented drone data supplies that foundation. Sloppy documentation gives opposing counsel an opening.
Conclusion
Drone bridge inspection works best when equipment, planning, and execution line up with the inspection's actual purpose and required accuracy. Most failures trace back to the same root causes: inadequate preparation, the wrong sensor for the job, or documentation gaps that surface later.
When a bridge incident escalates into litigation, precise drone data paired with forensic visualization helps a jury understand what happened and why. 21st Century Forensic Animations turns that evidence into court-ready 3D reconstructions grounded in physics and physical proof.
Frequently Asked Questions
How often does a bridge need to be inspected?
Under current NBIS rules, inspection intervals are risk-based and range from 12 to 72 months depending on bridge condition. Poor-condition bridges cannot exceed 24 months between inspections.
How much does a drone bridge inspection cost?
MnDOT's 2018 study found UAS equipment ran about $300/day plus $120/hour for post-processing, versus roughly $5,000/day for conventional under-bridge vehicles. Actual costs vary by structure size and sensor requirements.
Is a drone bridge inspection worth it?
For most routine and hard-to-reach inspections, yes. MnDOT reported average savings of 40% alongside reduced inspector risk and faster data collection. It is not a universal replacement for hands-on fracture-critical inspection.
Can you fly a drone under a bridge?
Generally yes, under Part 107 with proper precautions. FAA guidance for vertical-structure inspections sets specific criteria around distance, altitude, and visibility, and some sites require additional airspace authorization.
Do you need a license to use drones for bridge inspections?
Yes. Commercial operations require the remote pilot in command to hold an FAA Part 107 Remote Pilot Certificate.
Are drones replacing human bridge inspectors?
No. Drones improve data collection and safety, but hands-on verification is still required for certain structural elements, especially nonredundant steel tension members. They extend the inspector's reach without replacing professional judgment.
