Flying a drone over a scene looks simple — launch, capture, land. But the reliability of the resulting 3D reconstruction depends on far more than airtime. Flight planning, image overlap, processing method, and documentation all decide whether that model holds up when opposing counsel starts asking questions.
Aerial structure-from-motion documentation has been shown to cut scene-clearance times significantly compared to manual measurement methods. This guide covers the step-by-step process, equipment and legal requirements, the accuracy parameters that make or break a reconstruction, common mistakes, and when to bring in forensic reconstruction experts.
Key Takeaways
- Drone mapping shrinks hours of manual scene measurement into minutes, achieving centimeter-level accuracy
- Accuracy depends on resolution, overlap, lighting, and processing tier, not just owning a drone
- FAA Part 107 certification and agency-specific SOPs are required for lawful, evidentiary-grade flights
- Raw drone footage isn't automatically admissible; documented methodology and testimony strengthen its evidentiary value
- Trial-bound cases benefit most from pairing drone imagery with a specialized forensic reconstruction firm

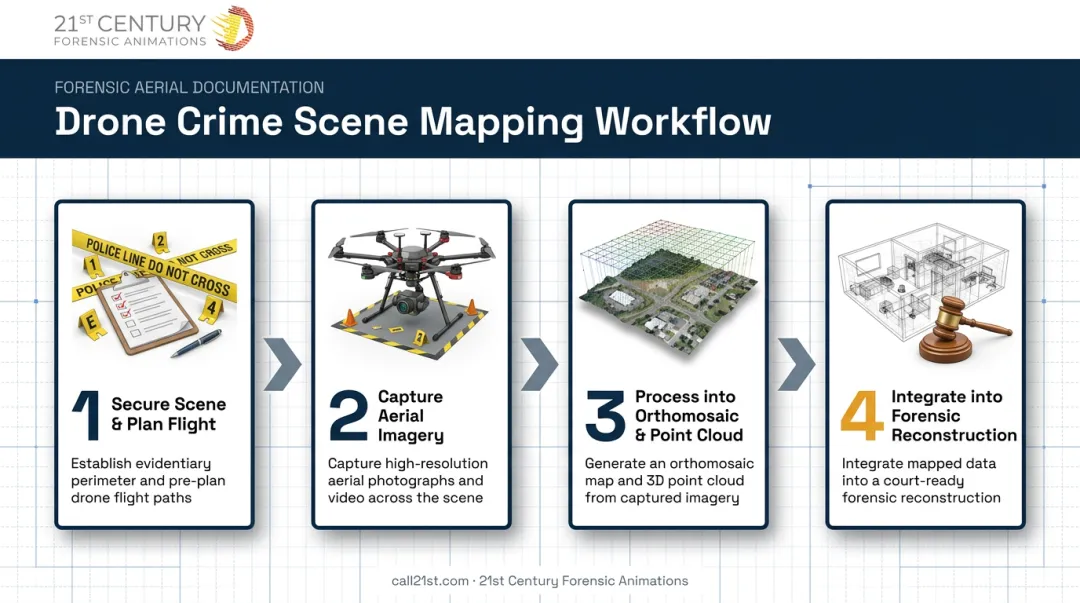

How to Map and Reconstruct a Crime Scene Using Drones: Step-by-Step
Step 1: Secure the Scene and Plan the Flight Mission
Before the drone leaves the ground, secure the physical scene completely. Establish the perimeter, place evidence markers, and confirm the airspace is clear of manned aircraft or bystanders.
- Check the airspace. If the scene falls within controlled airspace, obtain LAANC authorization before flight
- Pick a flight pattern. Use a grid or "lawnmower" pattern for orthomosaics, or an orbit path when you need a full 3D model
- Confirm conditions. Wind, lighting, and weather all need to fall within the drone's operational limits before takeoff
Step 2: Capture Aerial Imagery and Supporting Data
Once airborne, the mission has one job: capture enough overlapping imagery to let photogrammetry software rebuild the scene accurately.
- Fly the planned mission with sufficient front and side overlap between images
- Place or record GPS ground control points to anchor measurements to real-world scale
- Log every flight detail, including date, time, operator, drone model, altitude, and camera settings, to support chain-of-custody documentation later
Skipping that last bullet is one of the fastest ways to weaken a case months down the road.
Step 3: Process Images into Orthomosaics and 3D Point Clouds
Upload the raw images into photogrammetry software, which stitches them into two primary outputs: an orthomosaic (a flat, scaled image of the scene) and a densified 3D point cloud.
Before treating either as final, verify the processed model against ground control points or known measurements. Then select a processing accuracy tier appropriate to the case: a routine property dispute doesn't need the same scrutiny as a capital case headed for trial.
Step 4: Integrate Drone Data into the Forensic Reconstruction
Import the orthomosaic or 3D model into forensic diagramming or reconstruction software, then add measurements, annotations, and evidence markers. Cross-reference drone-derived measurements against other collected evidence, such as terrestrial laser scans or witness statements, to confirm consistency.
A 2020 RCMP field demonstration using Pix4D processing achieved measurement accuracy within roughly a centimeter compared to traditional survey methods. That precision offers a useful benchmark for arguing drone-based measurements are reliable enough to stand alongside conventional surveying techniques in court.
When Drone Mapping Makes Sense — And What You Need to Get Started
Ideal Use Cases for Drone Mapping (and When to Skip It)
- Large or complex outdoor scenes: multi-block shooting incidents or mass-casualty events, where manual measurement would take hours
- Hazardous or hard-to-access terrain: mountainous areas, rooftops, or structurally unstable locations
- Officer-involved shootings: establishing sightlines and spatial relationships from an aerial perspective
A four-block perimeter needing six to eight hours of manual measurement can be captured by drone in under an hour.
Drones aren't the right tool for every scene, though. Nighttime or low-light environments cause camera-based photogrammetry to lose detail fast, and small indoor scenes or tight spaces are usually better handled with handheld capture or terrestrial scanning.
Equipment and Software Requirements
These specs matter; re-flying a scene days later rarely gives a matching dataset.
- Image resolution. No single normative GSD standard exists for forensic work, but finer ground sample distance is needed to resolve small evidence like shell casings or tire marks
- Software. Photogrammetry or 3D reconstruction platforms capable of producing measurable, georeferenced outputs
- Battery and payload. Enough flight time to cover the full scene without multiple landings or battery swaps mid-capture
Firms offering drone imagery services typically run mission-planned flights capturing hundreds to thousands of overlapping images per scene, which gives processing software the redundancy it needs to build a defensible model.
Legal, Skill, and Compliance Readiness
Legally, this isn't optional. FAA Part 107 remote pilot certification is required for commercial and most public safety drone operations, along with agency-specific policies covering night flights or operations over people.
Documented SOPs covering chain of custody, from capture through processing and archival, matter just as much as the flight itself. Agencies or attorneys without in-house 3D reconstruction expertise often partner with a specialized forensic animation firm, such as 21st Century Forensic Animations, to make sure methodology is properly documented and can withstand cross-examination. Skipping this step risks having evidence thrown out before it reaches a jury.

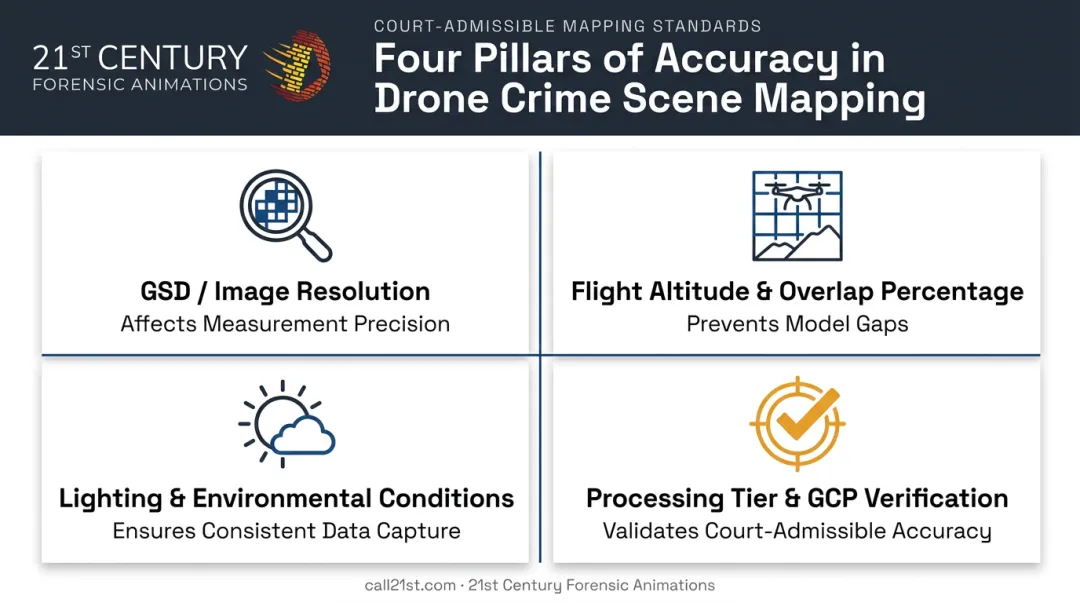

Key Parameters That Affect Accuracy and Courtroom Admissibility
The same drone, flown by the same pilot, can produce wildly different results depending on how these four variables get controlled.
Ground Sample Distance (GSD) / Image Resolution
GSD determines the smallest detail visible in the final model — the difference between spotting a shell casing and missing it entirely. Finer GSD increases measurement precision but requires lower flight altitude and more captured images. NIJ-funded research (NCJ 300669) found structure-from-motion error rates near one centimeter under controlled capture conditions.
Flight Altitude and Image Overlap Percentage
Overlap determines whether photogrammetry software can stitch images together without gaps. Insufficient overlap creates holes or distortion in the 3D model, giving defense attorneys an easy target during cross-examination.
Lighting and Environmental Conditions
Photogrammetry depends on visible light and contrast. A peer-reviewed study on aerial structure-from-motion photogrammetry found that night captures identify only 30-40% of the tie points found in daylight conditions, with poor lighting degrading overall accuracy. It can render entire sections of a scene unusable without supplemental lighting or an alternate capture method.
Processing Tier and Ground Control Point Verification
Different processing tiers affect whether resulting measurements can withstand defense scrutiny. Pairing ground control points with higher-accuracy processing brings measurement error down substantially compared to standard, GCP-free processing.
Common Mistakes and Troubleshooting When Using Drones for Crime Scene Mapping
Even experienced units make errors that compromise the evidentiary value of drone data.
- Skipping pre-flight airspace and weather checks. Confirm authorization and check wind and lighting conditions before takeoff to avoid legal exposure and quality problems.
- Miscalculating altitude or overlap. Gaps in the 3D model are hard to fix later, so review flight settings on-site and re-fly problem areas before leaving.
- Failing to document chain of custody or flight parameters. Use a standardized checklist covering operator, time, and settings for every flight, not just the "important" ones.
- Treating drone imagery as a stand-alone exhibit. Raw footage without documented methodology gets challenged in court; pairing it with a documented forensic reconstruction strengthens the exhibit.

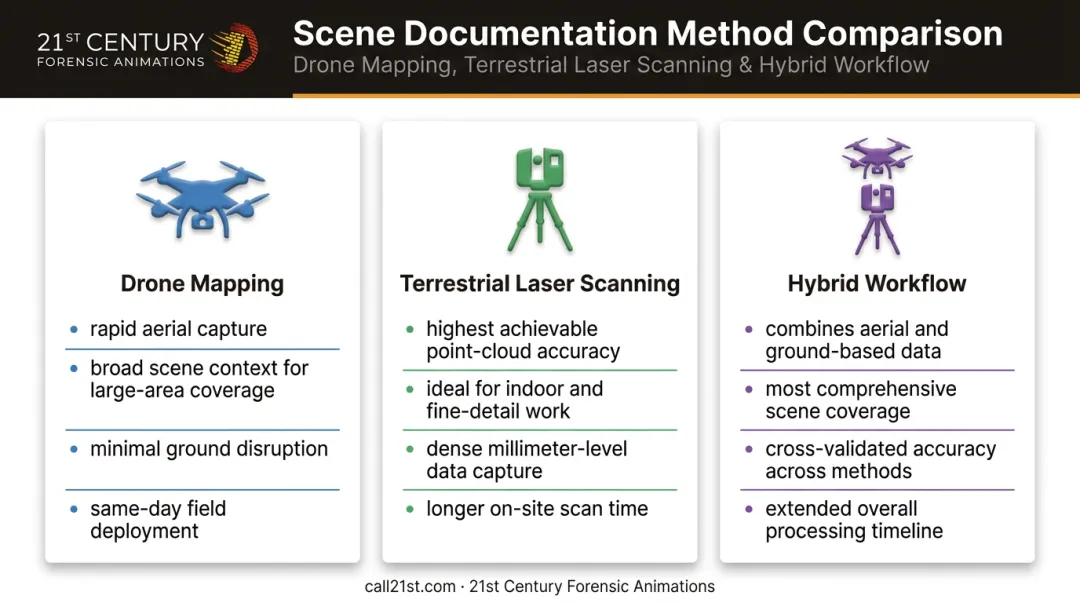

Alternatives to Drone-Only Mapping (and When to Call in Forensic Reconstruction Experts)
Drones aren't always the sole or best solution. Knowing the alternatives helps determine the right combination of tools for a given case.
Terrestrial Laser Scanning
Terrestrial scanning outperforms aerial methods for indoor scenes or cases requiring the highest possible accuracy, especially if the scene may need revisiting later. The trade-off: laser scanning is slower and requires personnel to physically enter and walk the scene, which isn't always practical or safe.
Hybrid Drone-and-Laser-Scan Workflows
Large, complex scenes often need both broad aerial context and fine ground-level detail, such as combining a vehicle crush analysis with a full roadway overview. Merging point clouds from multiple sources adds processing time, but it produces the most comprehensive courtroom exhibit available.
Partnering with a Professional Forensic Reconstruction Firm
When a case is heading to trial and opposing counsel is likely to challenge methodology, in-house drone footage usually isn't enough on its own. That's where a dedicated firm earns its fee.
21st Century Forensic Animations has translated physical evidence into court-tested 3D visualizations for 37 years, working across civil and criminal cases, domestically and internationally. The firm offers a free consultation to help attorneys determine what a specific case actually requires, whether that's drone imagery alone, a hybrid laser-scan workflow, or full expert witness support at trial.
Reach the team at (800) 460-2887.
Frequently Asked Questions
How are drones used in crime scene investigations?
Drones capture overlapping aerial photos and video used to build orthomosaics and 3D models. These support scene diagramming, hazard-free documentation of unstable areas, and courtroom exhibits.
How much do people charge for drone mapping?
Costs vary based on the drone platform and scene complexity, though the software processing tier also affects the final price. Firms such as 21st Century Forensic Animations typically offer free consultations to scope pricing per case.
Are drone-based crime scene reconstructions admissible in court?
Admissibility depends on documented methodology, maintained chain of custody, and independently verified accuracy. Expert foundation testimony often strengthens the exhibit's standing before a judge.
Do I need a certified pilot to fly a drone at a crime scene?
Yes, in most cases. FAA Part 107 remote pilot certification is required for most commercial and public safety operations. Agency-specific policies may add further requirements for night flights or flights over people.
How accurate is drone photogrammetry compared to laser scanning?
NIJ-funded research comparing terrestrial laser scanning against aerial photogrammetry and LiDAR found laser scanning generally more accurate, while drone-based methods capture large scenes faster. Each has clear trade-offs depending on scene size and required precision.
Can drones fully replace traditional crime scene documentation methods?
No. Drones complement rather than replace ground-based methods, especially indoors or in dense, low-light terrain, where hybrid approaches involving laser scanning tend to work best.
