Introduction
By the time the tow trucks leave, skid marks fade and the scene reopens to traffic, most of the physical evidence is gone. What remains, in many cases, are photographs — police shots, bystander phone footage, dashcam clips, or drone stills.
Photogrammetry and 3D modeling turn those flat images into scaled, measurable reconstructions. A photo taken years ago, showing nothing more than a stretch of road and a crumpled bumper, can become a dimensionally accurate exhibit a jury can walk through.
But it isn't automatic. Results depend heavily on photo quality, camera calibration, overlap between images, and the software methodology behind the model. Upload a stack of blurry phone pictures expecting a courtroom-ready exhibit, and you'll be disappointed.
This guide breaks down how the process works, when it's the right tool, and what preparation it demands. It also covers the variables that make or break accuracy, the mistakes that get reconstructions challenged, and how 21st Century Forensic Animations builds court-verified exhibits.
Key Takeaways
- Photogrammetry converts photos into scaled 3D models after evidence disappears
- Best for older civil cases, officer-involved shootings, and photo-only incidents
- Requires 70-80% image overlap, clear reference points, and scale calibration
- Accuracy depends on methodology and expert validation, not software alone
- Experienced forensic teams keep 3D models admissible in any jurisdiction
How Accident Reconstruction Works Using Photogrammetry and 3D Models

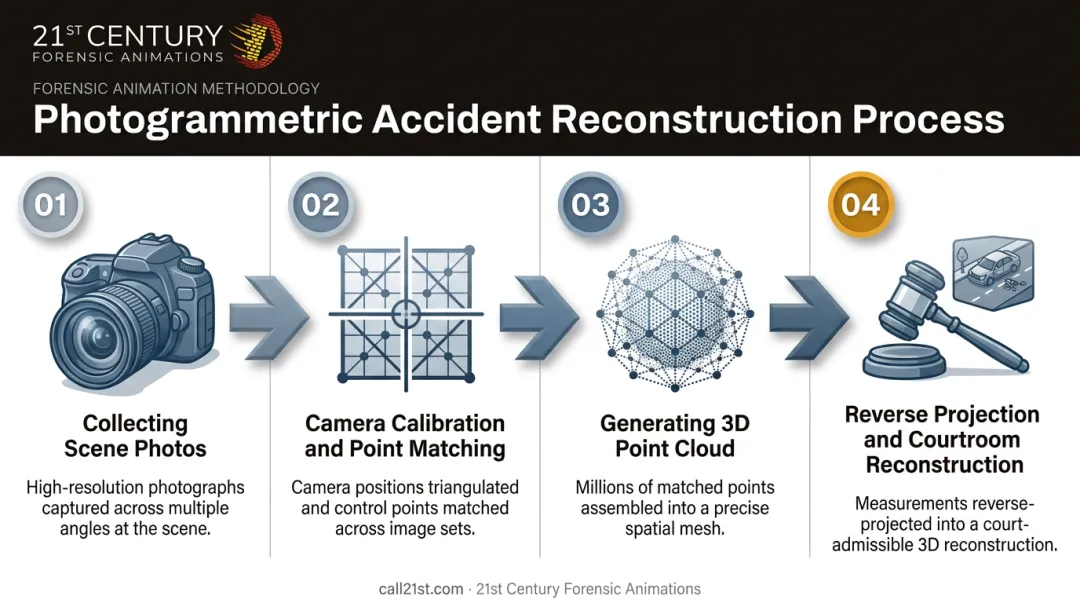

Turning photographs into a court-ready 3D reconstruction follows four stages. Each one builds on the last, and skipping steps is usually where reconstructions fall apart under cross-examination.
Step 1: Collecting Scene and Evidence Photographs
The process starts with whatever visual evidence exists: police photos, bystander phone images, security camera stills, and drone footage. More angles mean more reliability.
For any of this to work, multiple photos need to capture the same fixed, unchanged reference points — curbs, lane markings, sewer grates, utility poles. These become the anchors the entire model gets built on. Investigators often return to the scene for a quick follow-up shoot when the original photos miss key landmarks.
Preferred inputs include:
- DSLR or drone cameras shooting RAW or minimally compressed files
- Multiple overlapping angles of the same fixed features
- Original camera files rather than screenshots or re-saved copies
Step 2: Camera Calibration and Point Matching
Software then aligns the images using Structure from Motion (SfM) algorithms, matching common points across dozens or hundreds of photos to estimate camera position and reconstruct sparse 3D geometry.
This only works with sufficient overlap. Pix4D's guidance sets a recommended minimum around 75% frontal and 60% side overlap, while Agisoft recommends 80% forward and 60% side for aerial capture. Below that threshold, the software runs out of shared points to triangulate, and gaps appear in the model.
When overlap falls short, analysts usually schedule additional site photography rather than let the software estimate missing geometry.
Step 3: Generating the 3D Point Cloud and Model
Matched points become a dense 3D point cloud, sometimes paired with an orthomosaic image showing the scene's geometry from above. A point cloud without scale, though, is just a shape rather than a measurement.
Scale gets established through ground control points or known measurements, tying the model to real-world dimensions. Where added precision matters, teams merge this photogrammetric data with LiDAR or laser scans, which capture millions of spatial points directly from the physical scene. This hybrid approach captures fine surface details, such as tire tread patterns, that photographs alone often miss.
Step 4: Reverse Projection and Courtroom Reconstruction
The final stage, reverse projection, places 2D evidence, such as tire marks, debris fields, or gouge marks, into the scaled 3D environment. It relies on features that remain identifiable and unchanged in both the original photo and the model.
The output is a dimensionally accurate exhibit or animation: the kind of court-verified reconstruction firms like 21st Century Forensic Animations prepare for trial, built on physics and verifiable data rather than guesswork. This confirms every mark in the exhibit reflects a verified location, not an estimate.
When Should You Use Photogrammetry for Accident Reconstruction?

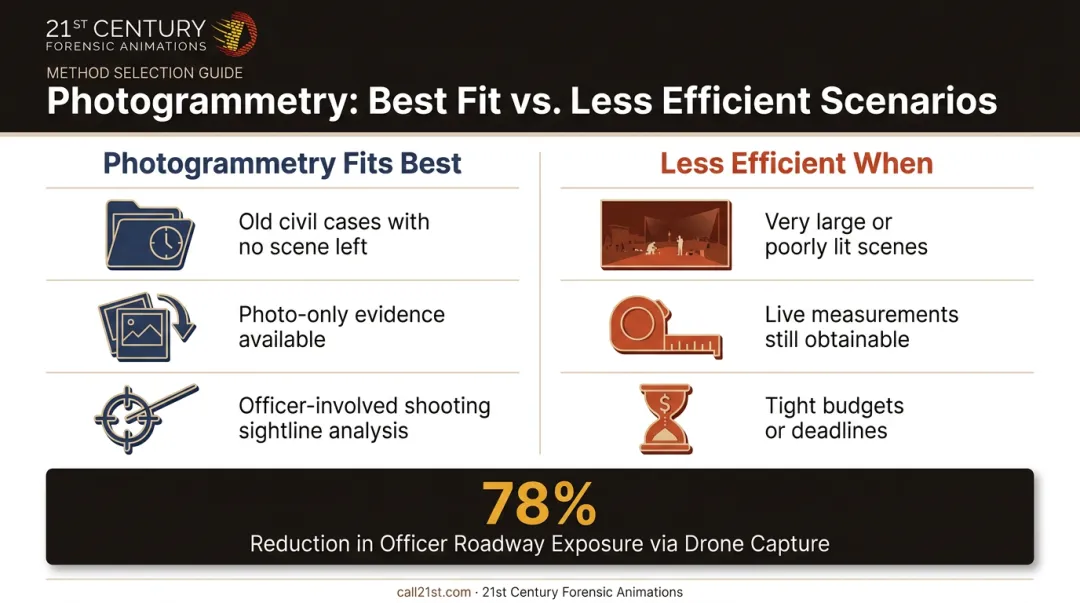

Photogrammetry isn't the default choice for every case. Whether it makes sense depends on scene condition, timing, and what evidence still exists.
It tends to be the right call when:
- Civil litigation reaches trial years after the collision, and the scene and vehicles are long gone
- The only documentation is bystander photos or officer scene photos, with no measurements ever taken
- An officer-involved shooting review needs perspective analysis to establish sightlines, distances, or positioning
21st Century Forensic Animations handles officer-involved shooting cases as one of its core verticals. The firm applies the same photogrammetric methodology used in motor vehicle reconstructions. That process extracts 3D spatial measurements from surveillance footage, dashcam video, or scene photographs, establishing where people and objects were positioned at the moment of the incident.
That said, it becomes less efficient when:
- The scene is very large or poorly lit, requiring supplemental lighting or LiDAR merging to fill gaps
- Live measurements are still obtainable, since a total station or terrestrial laser scanner captures direct geometry faster with fewer variables to defend later
- Case budgets or deadlines favor a single-visit total station survey over multi-angle photo capture and control-point verification
A 2018 NIJ-funded operational evaluation found drone-based collection at fresh crash scenes cut officer roadway exposure by roughly 78% and reduced scene clearance time by 35-45 minutes compared to manual total-station work. Even so, most agencies in that study used drones to complement total stations, not replace them.
What You Need Before Doing Accident Reconstruction With Photogrammetry
The quality of your inputs determines whether the final model survives scrutiny. Preparation matters more than software.
Equipment and System Requirements
At minimum, you need:
- Use a high-resolution camera or drone capable of shooting RAW or near-lossless images
- Capture enough photos to achieve full coverage of the scene from varied angles
- Include ground control points or RTK targets to anchor the model to real-world scale
Skipping any of these doesn't necessarily kill the project, but it narrows what the resulting model can reliably claim to show.
Inputs, Materials, or Conditions
Photo quality is non-negotiable. Investigators need:
- Capture multiple angles of each key feature, ideally overlapping by 70-80%
- Use minimal compression: original camera files, not screenshots or downloaded copies
- Include unaltered reference features visible across images, since these become the anchor points for reverse projection later
Blurry, low-resolution, or heavily compressed images limit how well software can match points between photos. That limitation carries straight through to the final model's accuracy.
Skill, Compliance, and Expert Readiness
None of this matters if the methodology can't survive a Daubert or Frye challenge. Courts expect documented, verifiable processes and an analyst who understands how rules of evidence differ across jurisdictions, whether civil, criminal, state, federal, or international.
Firms with decades of case history bring that readiness built in. 21st Century Forensic Animations, for example, maintains complete methodology documentation and a working knowledge of evidentiary standards across jurisdictions. They can also validate a model's accuracy on the stand if opposing counsel challenges it.
Key Parameters That Affect Accuracy and Courtroom Admissibility
A handful of controllable variables separate a reconstruction that holds up in court from one that gets picked apart on cross-examination.

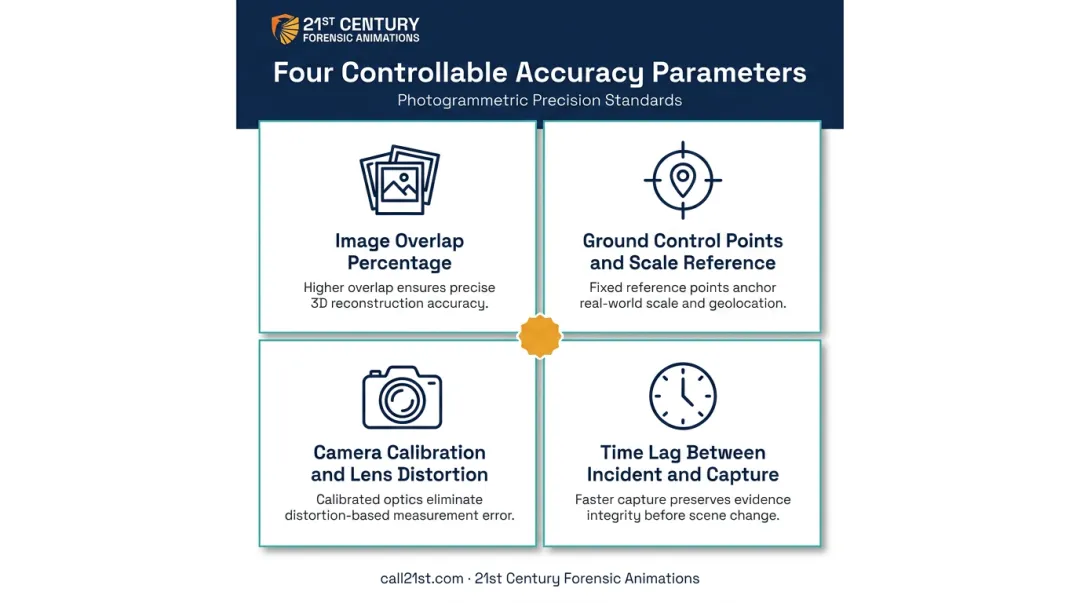

Image Overlap Percentage
Why it matters: Insufficient overlap creates gaps the software cannot triangulate. Every key feature needs to appear in multiple photos from different angles for the algorithm to calculate its position.
Impact on quality: Vendor guidance varies slightly, but the commonly cited 70-80% figure is a reasonable planning benchmark. It's a capture guideline, though, not a legal threshold for admissibility.
Ground Control Points and Scale Reference
Why it matters: Without a known scale reference, every measurement in the model is essentially a guess dressed up as data.
Impact on quality: Ground control points, distributed across the scene rather than clustered in one area, paired with RTK-tagged camera positions, can push accuracy close to survey grade. Independent checkpoints matter just as much, since a low error rate at the control points alone doesn't prove the rest of the model is accurate.
Camera Calibration and Lens Distortion
Why it matters: Every lens introduces some distortion. Left uncorrected, that distortion skews object size and position throughout the model.
Impact on quality: Calibration profiles correct for focal length, principal point, and radial and tangential distortion before modeling begins. Skip this step, and errors get baked into every measurement downstream, often invisibly until someone checks a known dimension against the model.
Time Lag Between Incident and Photo Capture
Why it matters: Scenes change. Weather, road repairs, and cleared debris all erode which features remain reliable anchors for reverse projection.
Impact on quality: Reverse projection depends entirely on fixed, unchanged objects still present when reference photos are taken, such as a curb, a sign post, or a building corner. If those features have been altered or removed, the reconstruction loses its anchor points regardless of how many years have passed.
Documenting all four of these parameters, image overlap, GCP placement, calibration profiles, and capture timing, is what lets a reconstruction survive a Daubert or Frye challenge. It's the same documentation standard 21st Century Forensic Animations builds into every case file.
Common Mistakes and Troubleshooting When Reconstructing Accidents With Photogrammetry
Most reconstruction challenges in court trace back to one of a handful of preventable errors.
- Insufficient overlap or angle diversity: confirm every key feature appears in at least three photos from different angles to avoid incomplete or distorted point clouds.
- Skipping scale calibration: verify scale against an independently confirmed dimension before finalizing the model, since skipped ground control points invite direct challenges from opposing counsel.
- Relying on low-resolution or compressed images: the "garbage in, garbage out" rule applies here. Request original camera files whenever they exist.
- Failing to document methodology and chain of custody: maintain a full audit trail from capture through final model to avoid exclusion before a jury ever sees it.
Each of these is fixable at the front end of a project. At 21st Century Forensic Animations, methodology documentation and audit trails are built into every case from day one, not patched in after opposing counsel finds the gap.
Frequently Asked Questions
Can AI do photogrammetry?
AI increasingly automates point matching, image alignment, and initial model generation. It still needs expert oversight to validate accuracy and confirm the methodology holds up under courtroom scrutiny.
Is a photogrammetry-based reconstruction accurate enough to use in court?
With proper overlap, calibration, and a solid scale reference, photogrammetry can reach near-survey-grade accuracy that's been accepted in civil and criminal proceedings. The methodology behind it has to be documented and defensible, not just the output.
How long does a photogrammetric accident reconstruction take?
Data capture can take anywhere from minutes to a few hours, depending on scene size. Processing and building a court-ready exhibit generally takes longer and scales with scene complexity.
What's the difference between photogrammetry and LiDAR laser scanning?
Photogrammetry builds 3D models from overlapping photographs; LiDAR uses laser pulses to measure distance directly. Reconstruction teams often merge both methods for added precision on complex scenes.
Can photogrammetry work with old or bystander-captured photos?
Yes, as long as unchanged reference features appear in both the older photos and a newer reference model. Those fixed points are what make reverse projection possible years after the fact.
Do you need the actual vehicle to reconstruct a crash using photogrammetry?
No. SAE research on vehicle crush documentation found that a usable solution was possible with as few as 16 encircling photographs. A physical inspection is still preferred when the vehicle remains available.
